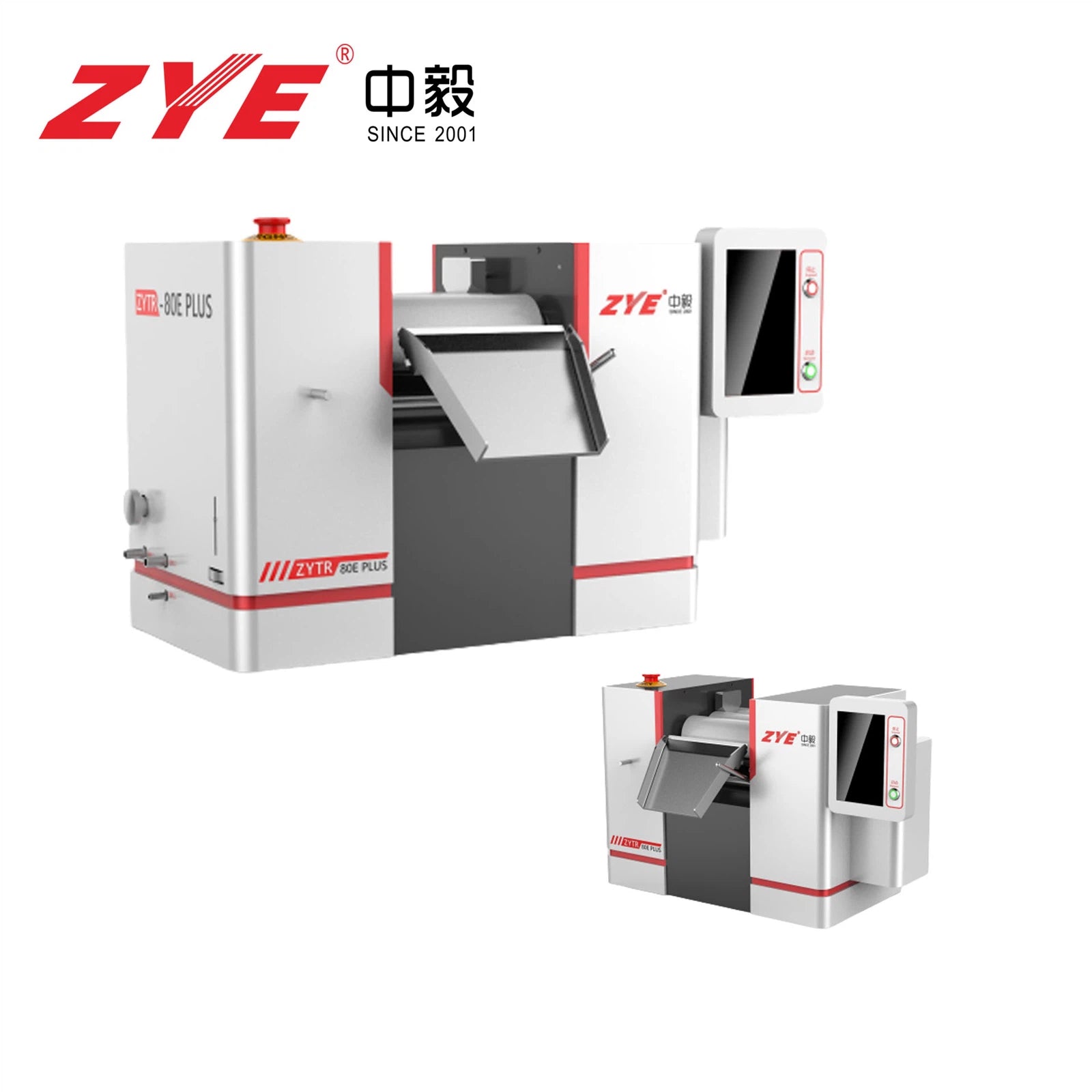

80mm Electronic Three Roll Mill ZYTR-80E
80mm Electronic Three Roll Mill ZYTR-80E
Product Specification
|
SPECIFICATION FOR ZYTR-80E Plus THREE ROLL MILL |
|||
|
Diameter of Roller |
80mm |
Length of Roller |
200mm |
|
Roller Speed Ratio |
1:3:9 |
Power Configuration |
Servo Motor |
|
Power/Voltage |
2KW, 220V |
Throughput |
0.02-20L/h |
|
Size |
L860mm*W460mm*H530mm |
N.W. |
70KG |
|
Concentricity/Straightness |
< 2 micron |
Planeness |
< 0.3 micron |
Application
Three roller mill is widely applied in institute experiment and trail production of paint, dye, printing ink, cosmetics, rubber, soap, high viscosity pulp, agriculture chemicals, ceramic, adhesion and grinding paste slurry etc. Laboratory three roller grinding mill is currently one of the most popular grinding mill for paint, UV ink production.
Main feature：
1. Roller Material: ZrO2/ Al2O3/ Si3N4, Import Nanoscale Ceramics Roller
2. Ceramic Roll Spacing: 5-120 Micron
3. Ceramic Roll Speed：0-500RPM（The max speed of the discharge rollers per minute）
4. Power Configuration: Servo motor, Steady moment, Safe and reliable
5. High precise (minimum 1μm, depend on materials)
6. Touch Screen, the operation data can be exported and conneced online
7. The temperature of each roller can be adusjted independently
8. Easy-cleaning roller
9. Hopper(optional)
